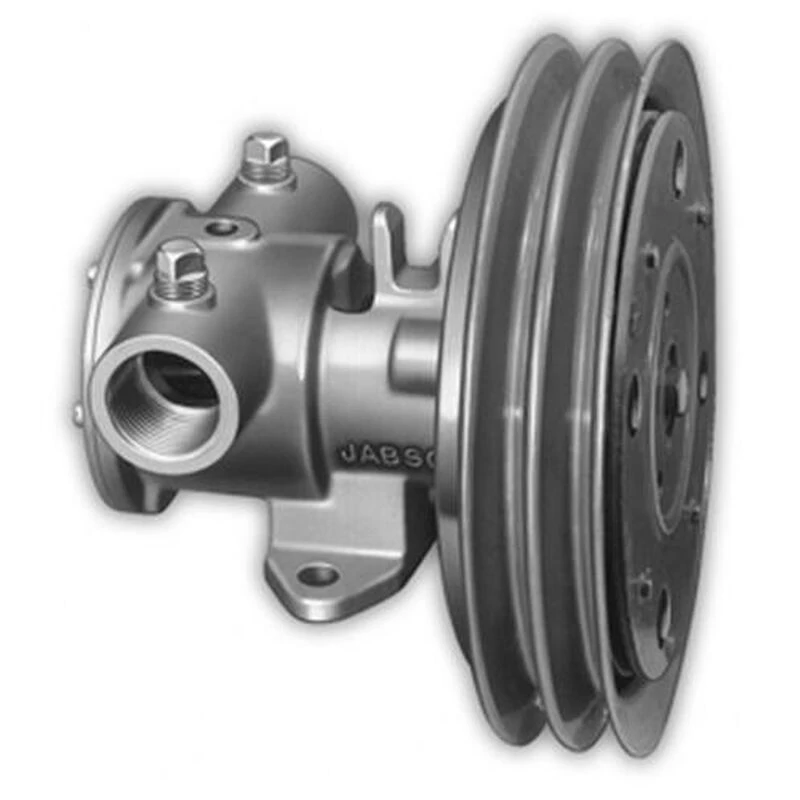

JABSCO Electro-Magnetic Clutch Pumps

Industrial water pump that can be powered using the boat engine

Having a water pump that is not reliant on the boat’s battery banks can come in handy; especially while trolling or in emergency situations. This Jabsco pump was designed to be belt driven using a gasoline or diesel engine and engages via an electro-magnetic clutch that can be turned ON and OFF using a remote switch. While there are countless applications for these pumps, they are ideal for bait tank circulation while trolling, for washdown pumps or as an emergency bilge pump. Flow rates are dependent on pulley RPM and flow direction relies on rotational direction of the pulley. A bronze body and stainless steel shaft easily stand up to the marine environment. Nitrile or Neoprene impellers can be used and are accessed through a cover plate close to the 1″ NPT intake and output ports. Save your battery life for making ice for your catch and harness your boat’s engine power for your bait using a belt driven pump.

Key Features

• Industrial bronze and stainless steel construction to stand up to the marine environment.
• Save battery life by using engine power to pump water
• Electro-magnetic clutch allows operation using dash mounted switch
• Impeller accessed through cover plate close to ports for easy service
• Self-priming up to 7′ 10″
• Available with 2 A Section pulley or 1 B Section pulley
• Up to 23.3 gallons/minute at 1750 RPM (at pump pulley)
• 1″ NPT ports for intake and output
• Use of a vacuum switch is recommended to prevent running pump dry
• One-year warranty

Specifications

• Switch Voltage: 12VDC, 24V DC
• Switch Amperage: 4A
• Body Materials: Bronze
• Impeller: Neoprene (Nitrile compatible)
• Shaft Material: Stainless steel
• Port Intake: 1″ NPT
• Port Output: 1″ NPT
• Pulley Size: 7″ ‘A’ or ‘B’ section
