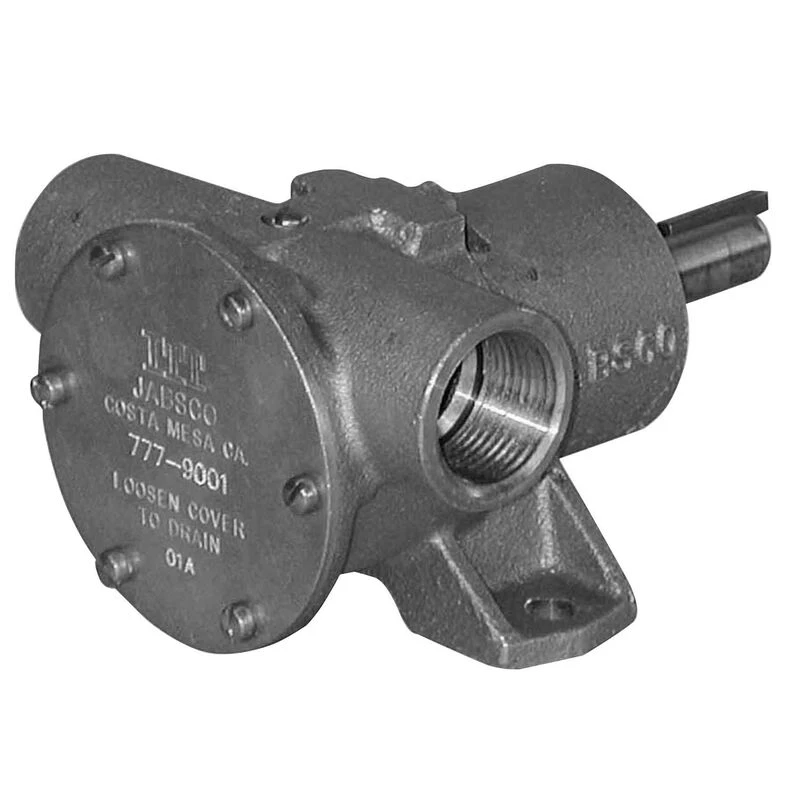

JABSCO 777-9001 Water Circulating Pump

Multi use pedestal pump ideal for engine cooling applications.

As the originator of the flexible impeller engine cooling pump, Jabsco has a reputation for quality, reliability and serviceability. This pump features a Bronze cast body and stainless steel shaft to resist corrosion. A neoprene impeller is standard and is ideal for raw water engine cooling system applications. However, this pump can be used for many applications such as wash-down systems and bait tank circulation. The bi-directional design allows the pump to be installed on counter rotating engines. For alternative uses, a nitrile impeller is available and will stand up to petroleum products including as diesel. These pumps can be fully serviced and restored to like-new condition with a simple service kit, thus avoiding costly replacement.

Key Features

• Bronze cast pump body resists corrosion
• Stainless steel shaft with mechanical lip seals for marine use
• Self-priming to 10 ft with 22 ft of lift
• Bi-directional operation for various applications including counter rotating engines
• 1″ NPT female ports
• Fully serviceable using replacement impellers (p/n 17937-0001) or rebuild kit (p/n 90118-0001)
• One-year limited warranty

Specifications

• Capacity: 6 gpm @500 RPM, 35 gpm @3000 RPM
• Ports: 1″NPT
• Height: 3 9/16″
• Width: 4 3/4″
• Length: 6 5/16″
